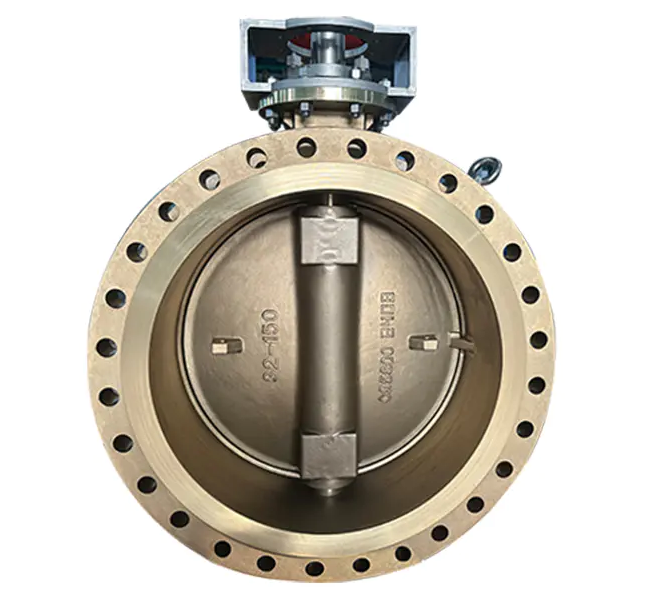

Bi-directional butterfly valves are widely used in various piping systems to control fluid flow. These valves are designed to allow flow in both directions, making them versatile for many applications. The basic structure of a bi-directional butterfly valve includes a disc mounted on a rotating shaft. When the valve is open, the disc is turned to allow fluid passage, and when closed, it blocks the flow effectively from either side.

The bi-directional feature means the valve can handle pressure from both upstream and downstream directions. This makes it useful in systems where the flow direction can change or where reverse flow prevention is necessary. The sealing mechanism in these valves ensures minimal leakage and maintains system integrity even when pressure is applied from both sides.

Materials used in bi-directional butterfly valves vary according to the medium and operating conditions. Common materials include stainless steel, cast iron, and various elastomers for seals. These choices influence the valve’s resistance to corrosion, temperature, and pressure, allowing the valve to be tailored for specific industrial environments.

Installation and maintenance of bi-directional butterfly valves are generally straightforward. The valve’s compact design contributes to easier fitting into piping systems with limited space. Routine checks focus on the disc, seals, and shaft to ensure smooth operation and to prevent wear that could affect performance.

In terms of operation, these valves are usually actuated manually or through automated systems such as electric or pneumatic actuators. This flexibility allows integration into complex control systems where precise flow regulation is needed. The speed of opening and closing can be adjusted to suit process requirements.

Bi-directional butterfly valves find use in water treatment plants, chemical processing, HVAC systems, and many other industries. Their ability to manage flow from either direction without compromising sealing makes them suitable for safety and control purposes.

Overall, bi-directional butterfly valves offer a reliable solution for fluid control where flow direction may vary. Their design balances efficiency and functionality, contributing to smoother operations in diverse applications.
